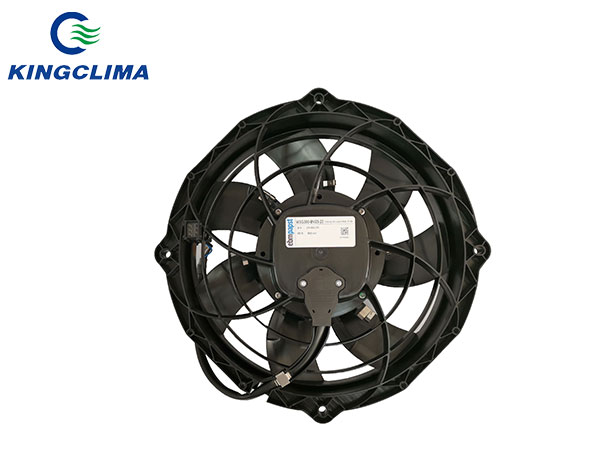

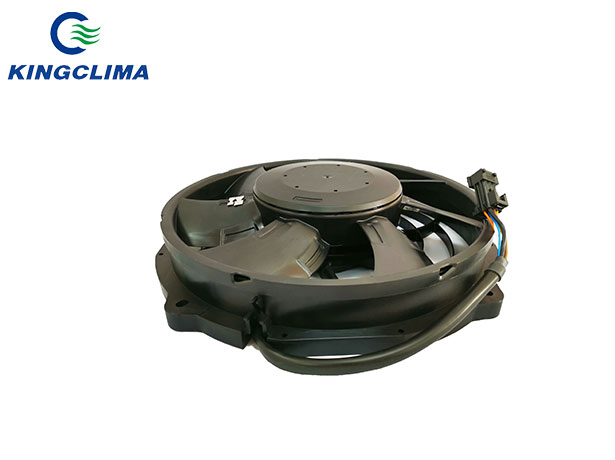

Introduction about KingClima Condenser Fan for EBM W3G300-BV25-23

This model has a wide range of applications, competitive price, sturdy and durable, making it a great choice for ebm condenser fans

KingClima is the leading supplier of condenser fan in China with best price and professional service! We have all kinds of condenser fans for OEM and aftermarket field.

Mass	2 kg
Size	300 mm
Material of impeller	PA plastic
Material of wall ring	PA plastic
Number of blades	7
Direction of air flow	V"
Direction of rotation	Clockwise, seen on rotor
Type of protection	IP 24 KM; (Motor); electronics IP 66 / 69 K
Insulation class	"B"
Humidity class	F4-1
Max. permissible ambient motor temp. (transp./ storage)	+110 °C
Min. permissible ambient motor temp. (transp./storage)	-40 °C
Mounting position	Any
Condensate discharge holes	None, open rotor
Operation mode	S1
Motor bearing	Ball bearing
Technical features	- Direction of rotation selection counter-clockwise / clockwise
	- Fault output (high-side switch max. 30 mA)
	- Output limit
	- Motor current limit
	- Soft start
EMC directives	ECE R10 Rev.3
Electrical leads	With plug
Motor protection	Reverse polarity and locked-rotor protection
Cable exit	Lateral
