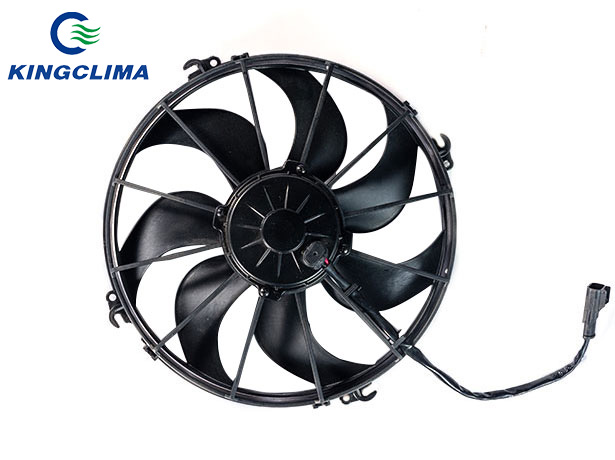

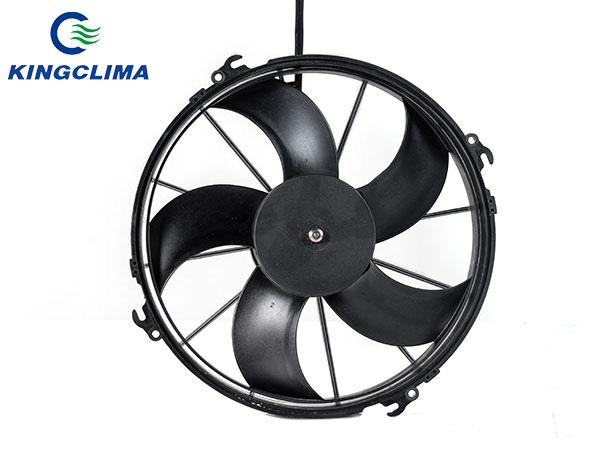

KingClima Condenser Fan for Spal VA01-BP70/LL-66A
OE NO. :
VA01-BP70/LL-66A
Brand Name:
SPAL Fan
Voltage:
24V
Air Volume:
Over 2300 m³/h
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Introduction about the Spal fan VA01-BP70/LL-66A
Spal fans are used for bus ac cooling solution to make it have a better cooling performance. The OEM code of va01-bp70/ll-66a that KingClima provide is original new one for bus ac unit with best price.
KingClima is the leading supplier of condenser fan in China with best price and professional service! We have all kinds of condenser fans for OEM and aftermarket field.
| Static pressure | Airflow | Current input | Airflow | Static pressure |
| mm H20 | m³/h | A | CFM | in H20 |
| 0 | 2650 | 7.1 | 1564 | 0 |
| 5 | 2390 | 7.5 | 1410 | 0.2 |
| 10 | 2070 | 8 | 1221 | 0.4 |
| 15 | 1700 | 8.2 | 1003 | 0.6 |
| 20 | 1120 | 8.4 | 661 | 0.8 |
| 25 | 700 | 8.9 | 413 | 1 |
| 30 | 420 | 9.6 | 248 | 1.2 |
| 35 | 210 | 10.5 | 124 | 1.4 |
| 40 | 0 | 11.6 | 0 | 1.6 |
