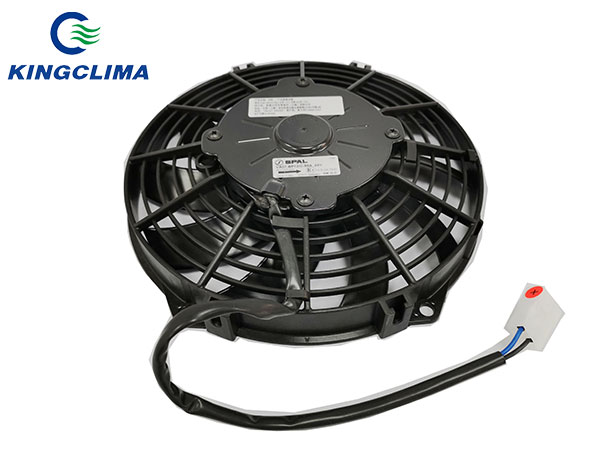

KingClima Condenser Fan for Spal VA07-BP12C-58A
OE NO. :
VA07-BP12C-58A
Brand Name:
SPAL Fan
Voltage:
24V
Warranty:
One Year
Airflow:
690 CFM
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Introduction of VA07-BP12C-58A Fan
The spal va07-bp12/c-58a 24v fan is designed ingeniously, not only has the airflow been large, but the body is also much thinner than the traditional fan, and the weight is also relatively light. Moreover, the design of the curved blades of the spal va07-bp12/c-58a fan can also reduce the noise during the operation of the fan.
The positive feedback from our customers is the best recognition for us. We will always reach cooperation with air conditioning manufacturers.
| Maximum Airflow (at zero Static Pressure) | 690CFM (1170m³/h) |
| Fan Blade Ø | 225mm (9") |
| Standard Features | Waterproof motor, IP 68 |
| Noise | Low noise |
| Life | Long life |
| Warranty | 12 Months Guarantee |
| Operating Voltage | 24v (tested at:26v) |
| IP Rating | IP68 |
| SPAL Type/Description | VA07-BP12/C-58A |
| Airflow Direction | Suction |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |

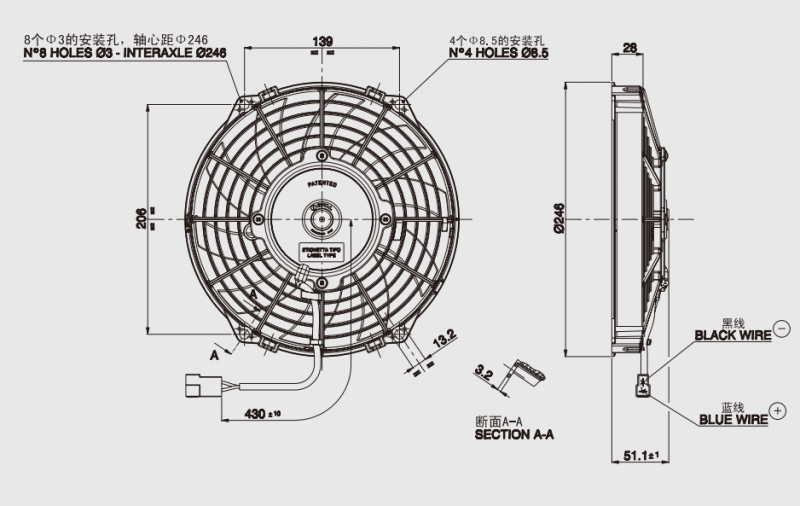

.jpg/Drawing%20VA07-BP12C-58S(1)__800x506.jpg)
