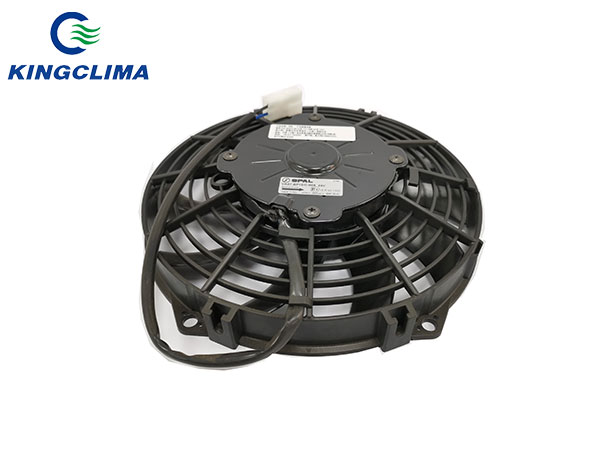

KingClima Condenser Fan for Spal VA07-BP12/C-58S
OE NO. :
VA07-BP12/C-58S
Brand Name:
SPAL Fan
Voltage:
24V
Warranty:
One Year
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
A brief introduction to VA07-BP12/C-58S
VA07-BP12/C-58S is sturdy and durable with strong airflow.
As a spal fan, it has the characteristics that a spal fan should have: high standard and high efficiency.
| Maximum Airflow (at zero Static Pressure) | 696CFM (1180m³/h) |
| Fan Blade Ø | 225mm (9") |
| Standard Features | Waterproof motor, IP 68 |
| Noise | Low noise |
| Life | Long life |
| Warranty | 12 Months Guarantee |
| Operating Voltage | 24v (tested at:26v) |
| IP Rating | IP68 |
| SPAL Type/Description | VA07-BP12/C-58S |
| Airflow Direction | Blowing |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |
