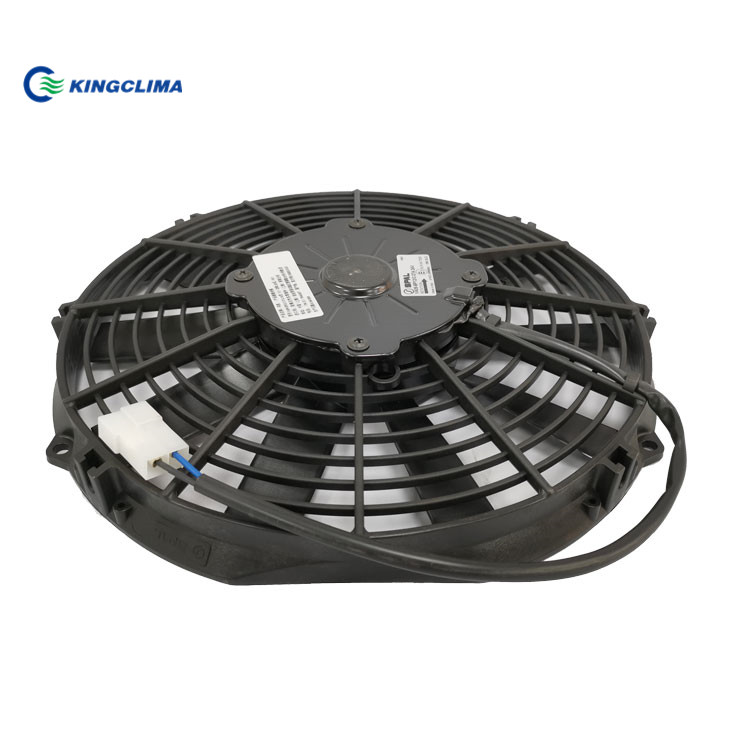

KingClima Condenser Fan for Spal VA09-BP12-C-27A
OE NO. :
VA09-BP12-C-27A
Brand Name:
SPAL Fan
Voltage:
24V
Air flow:
1550 m³/h
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Introduction of va10-bp50/c-61a fan
The va09-bp12/c-27a 24v bus ac condenser fan (Autoclima: 30-3150-04 or OE: VT1152A , 1550 310 280 52 for bus ac unit with best price. ) is original new one for bus ac unit.
KingClima as the leading supplier of bus ac parts in China can supply two kinds of bus ac condenser fans.
China made version: with very best price and high quality.
Original new version：SPAL, EBM, Thermo King, Carrier...
Spal
VA09-BP12/C-27A, VA09BP12C27A, VA09BP12C27A
Autoclima
30-3150-04, 30315004, 30-315004
OE:
VT1152A , 1550 310 280 52
VA09-BP12/C-27A, VA09BP12C27A, VA09BP12C27A
Autoclima
30-3150-04, 30315004, 30-315004
OE:
VT1152A , 1550 310 280 52
| Maximum Airflow (at zero Static Pressure) | 856CFM (1450m³/h) |
| Fan Blade Ø | 280mm (11") |
| Standard Features | Waterproof motor, IP 68 |
| Life | Long life |
| Warranty | 12 Months Guarantee |
| Operating Voltage | 24v (tested at:26v) |
| IP Rating | IP68 |
| SPAL Type/Description | VA09-BP12/C-27A |
| Airflow Direction | Suction |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |
