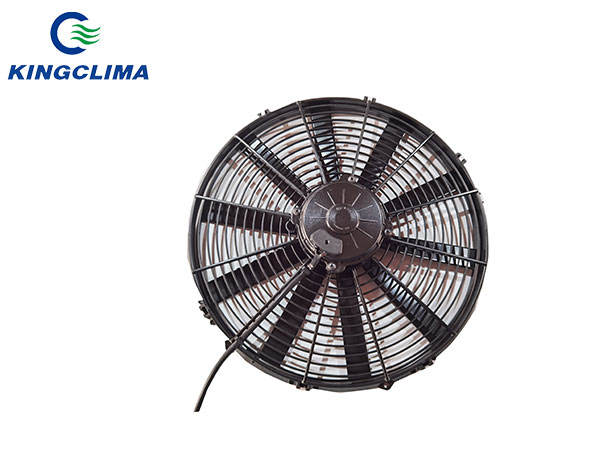

KingClima Condenser Fan for Spal VA18-BP70/LL-86A
OE NO. :
VA18-BP70/LL-86A
Blade OD:
15.16”
Voltage:
24V
Type:
Suction/Puller Fan
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Introduction of VA18-BP70LL-86A Fan
The spal va18-bp70/ll-86a 24v fan uses American and Dutch automotive-grade chips. Compared with the resistance of the same industry, the stability is increased by 10% at least, the temperature resistance reaches 150 degrees, and the automatic protection function is set at 120 degrees.
| Fan Part | VA18-BP70/LL-86A |
| Total Amp Draw | 22 |
| Total Depth | 3.39" |
| Overall Height | 16.30" |
| Overall Width | 15.75" |
| Voltage | 24 |
