KingClima Condenser Fan for Spal VA89-BBL342-94A
OE NO. :
VA89-BBL342-94A
Voltage:
24V
Power:
300W
RPM:
800 ~ 3400 RPM
Maximum Air Volume:
3050.0 M3h, 1794.0 CFM
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
Product Tags
Introduction of Spal VA89-BBL342-94A Fan
The Fan of va89-bbl342-94a is suitable for large and medium-sized passenger cars. The va89-bbl342-94a fan is made of plastic material with light weight, which can effectively improve the operating efficiency.KingClima is the leading supplier of bus air conditoner fans in China with best price and professional service. We have all kinds of bus air conditoner fans and blowers for OEM and aftermarket field.

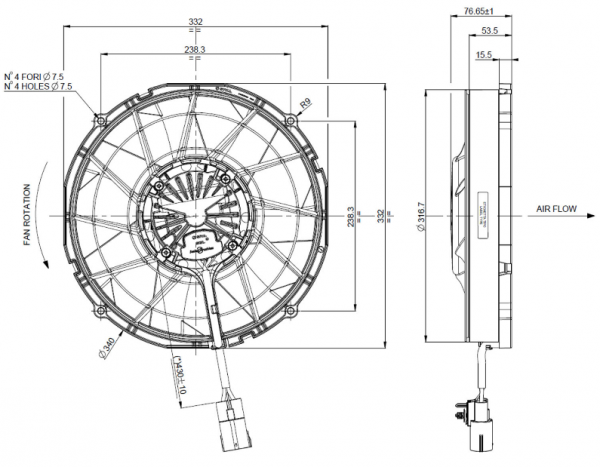

| Model Number | VA89-BBL342P/N-94A |
| Airflow Max | 3674 m3/hr |
| Weight | 2.2 kg |
| Blade Diameter | ∅ 305mm |
| Housing Diameter | ∅ 332mm |
| Housing Depth | 76.65mm |
| Operational Fan Speed | 800 - 4100rpm |
| Voltage | 24v |
| Current Continuous | 18.8 - 23.5a |
| Power Consumption | 451.2 - 564w |
| Protection | IP6K9K and IP68 Certified |
