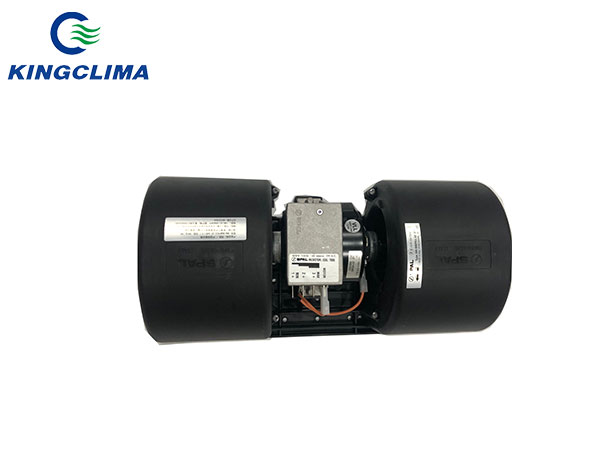

KingClima Evaporator Blower for Spal 006-B40VLL-22
Brand Name:
SPAL Evaporator Blower
OE NO. :
006-A40-22,006-B40-22
Voltage:
12V
Static Pressure:
100Pa
Air Volume:
1000m³/h
Warranty:
One Year
We're here to help: Easy ways to get the answers you need.
Categories
Relate Product
.jpg)
Product Tags
Introduction of 006-B40VLL-22 Evaporator Blower
KingClima is the leading supplier of bus air conditoner fans in China with best price and professional service. We have all kinds of bus air conditoner fans and blowers for OEM and aftermarket field.
This is KingClima Evaporator Blower for Spal 006-B40VLL-22. Spal Evaporator Blower is used in the system of bus ac parts,The OEM code of 006-A40-22,006-B40-22 of KingClima is original new one for bus ac unit with best quality.
| Maximum Airflow (at zero Static Pressure) | 596CFM (1010m³/h) |
| Fan Blade Ø | 225mm (9") |
| Standard Features | Waterproof motor, IP 68 |
| Life | Long life |
| Warranty | 12 Months Guarantee |
| Operating Voltage | 12v (tested at:13v) |
| IP Rating | IP68 |
| SPAL Type/Description | VA07-AP7/C-31A |
| /C: C Class 5000hr motor | |
| Airflow Direction | Suction |
| Mounting Bolt/Screw | M5 bolt |
| Mounting Torque | 3(+1/-0) Nm |
